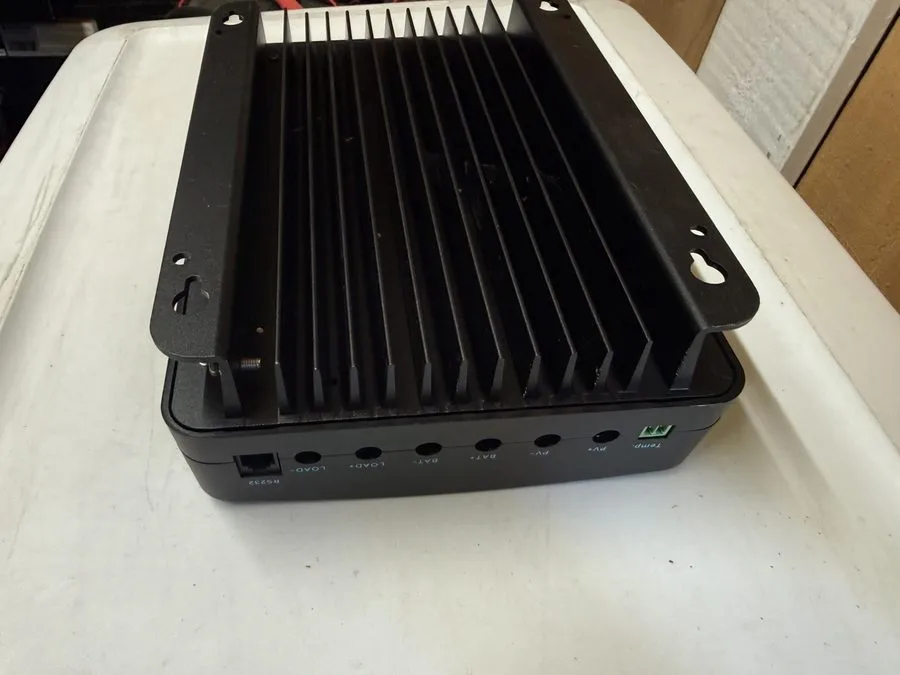

Аккумулятор Renogy Rover 40A MPPT 12V/24V Solar Charge Controller Model RNG-CTRL-RVR40 — продавец №9014299

Electrical Parameters Nominal System Voltage 12/24V Auto-Detect Rated Charge Current 40A Solar Input Voltage Range (Voc) 15VDC~100VDC Max. PV Input Power 12V/520W, 24V/1040W Power Consumption ＜100mA/12V; ＜58mA/24V Battery Input Voltage Range 10VDC~32VDC Communication G1 Version: RS232, G2 Version: RS485 Electrical Protection Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries. Environmental Data Protection Level IP32 Operating Temperature Range 35°C to 45°C; -31°F to 113°F Storage Temperature Range 35°C to 75°C; -31°F to 167°F Operating / Storage Humidity ≤ 90%, No Condensation Temperature Compensation 3mV/°C/2V Mechanical Specifications Dimensions 238 x 172 x 77 mm;9.38 x 6.78 x 3.05 in Weight 2.0kg / 4.41 lb Max. Terminals Size 8 AWG 10mm2 Accessories Certifications CE YES FCC Class B Part 15 Compliant YES Compatibility Compatible MPPT Charge Controller RNG-CTRL-RVR40/ RNG-CTRL-RVR60/ RNG-CTRL-RVR100 Compatible App Renogy DC Home App available in both the App Store and Google Play Operation Specifications Communication Protocol RS485 Modbus Port Type RJ12 Input Voltage /repeat1 5V Protection Grade IP54 Standby Power Consumption 0.04W Operating Power Consumption 0.05W Serial Baud Rate Fixed Baud Rate 9600bps Mechanical Specifications /repeat2 Communication Range ≤82ft (25m) Cable Length 16.4 ft (5.00m ) Dimensions/repeat3 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) Weights/repeat4 4.58oz (130g ) Operation Temperature 31℉ to 113℉/-35℃ to 45℃ Storage Temperature 31℉ to 167℉/-35℃ to 75℃ Operating Altitude ≤3000m Certifications/repeat5 FCC Class B Part 15 Compliant/repeat6 YES Charge Controllers Rover Bluetooth module not included. Used working condition.
