Оборудование ЧПУ BULKMAN3D OXMAN CNC Router 4 Axis DDCSV4 Offline Control Wood Engraving Machine — продавец №3948763, лот B2B-1FA506

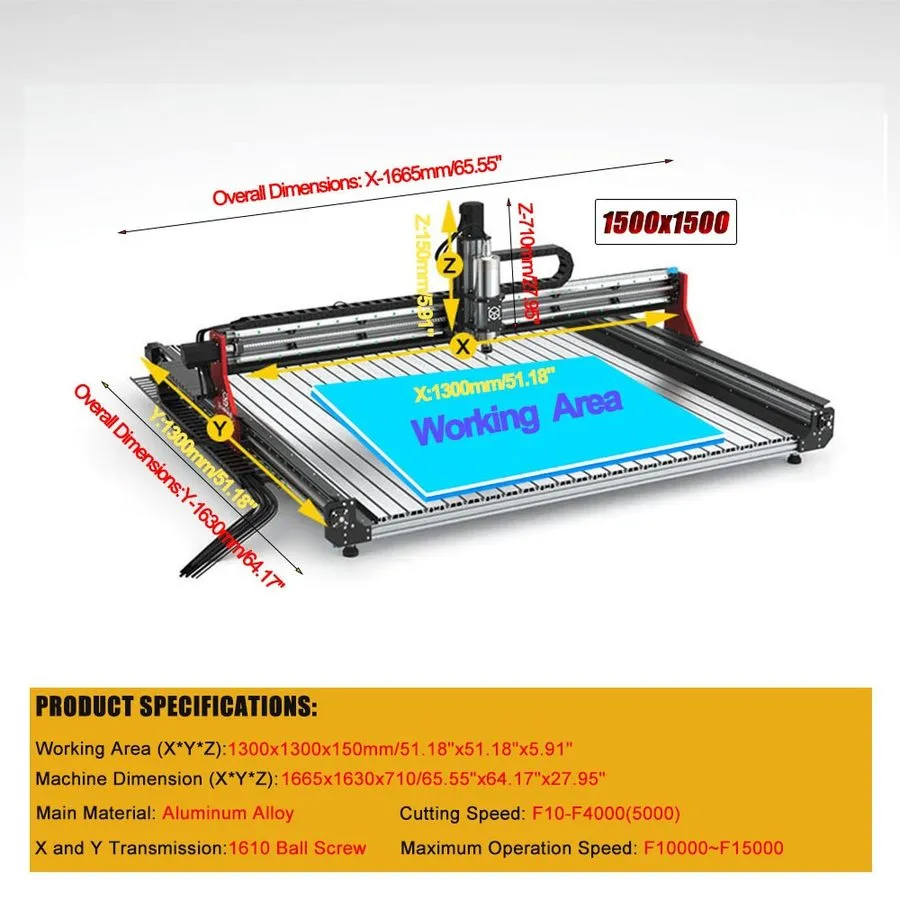

The OXMAN CNC Router is an industrial Grade CNC Newly designed with SFU16 (16mm) Ball Screws and Double Dual Extended HG&MGN Linear Rails trammission on each axis. All key components of the entire machine are installed with precision locaing pins,and all axes are protected by sheet metal and rein-forced aluminum. It is 100% fully self-developed, designed by BulkMan3D International R&D Team and copyrighted by BulkMan3D. The main difference between the 3 versions of OXMAN is the workbench,we recommend OXMAN ULTRA as it comes with complete deluxe workbench. This Full Kit Includes: 1500x1500mm OXMAN CNC Frame Kit (OXMAN or OXMAN PRO or OXMAN ULTRA for choice） (X axis and 2Y axis=SFS1610 Ball Screw, Z axis=SFU1204 Ball Screw) New Design Cable Drag Chain System 1x XYZ Probe (Free Gift) 1x Drill Bits (Free Gift) Wiring Shielded Cable Kit + Options Spindle Bundle Kit with Dust Cover-80mm 2.2KW 220V Water-Cooled ( Only with DDCS4 V4.1 OFF-LINE Control Box Option) 2.2KW 110V/220V Water-Cooled Spindle Bundle (High Speed 7 Series 4 Bearings) 2.2KW 110V/220V Air-Cooled Spindle Bundle (High Speed 7 Series 4 Bearings) + Options Controller Bundle Kit with Stepper Motors DDCSV4.1 OFF-LINE Control Box (with 2.2N.m Closed Loop Stepper Motors) UC300 Mach3 (with 2.2N.m Closed Loop Stepper Motors) DDCS4V3.1 OFF-LINE (with 2.2N.m Closed Loop Stepper Motors) Attention: The Ball screw nut fixing and dismounting requires professional tools or done by professional stuffs! Never rotate the ball screw nut over the ball screw end! This is very important as if the ball bearings come off the ball nut, the ball screw will not work properly and you will void any warranty! Machine Capability The OXMAN CNC excels at Cutting and 3D Carving through plastics, foam, softwood, hardwood and even soft metal such as aluminium and brass. Compatible Material for Cutting/Milling/Engraving : Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam and so on. By using different   Drill Bits & M
