Контактор Schneider Electric LC1D128E7 TeSys D Contactor 4-Pole 2S+2NO 25A 48V AC 50/60Hz — продавец №4872323, лот B2B-CBBD89

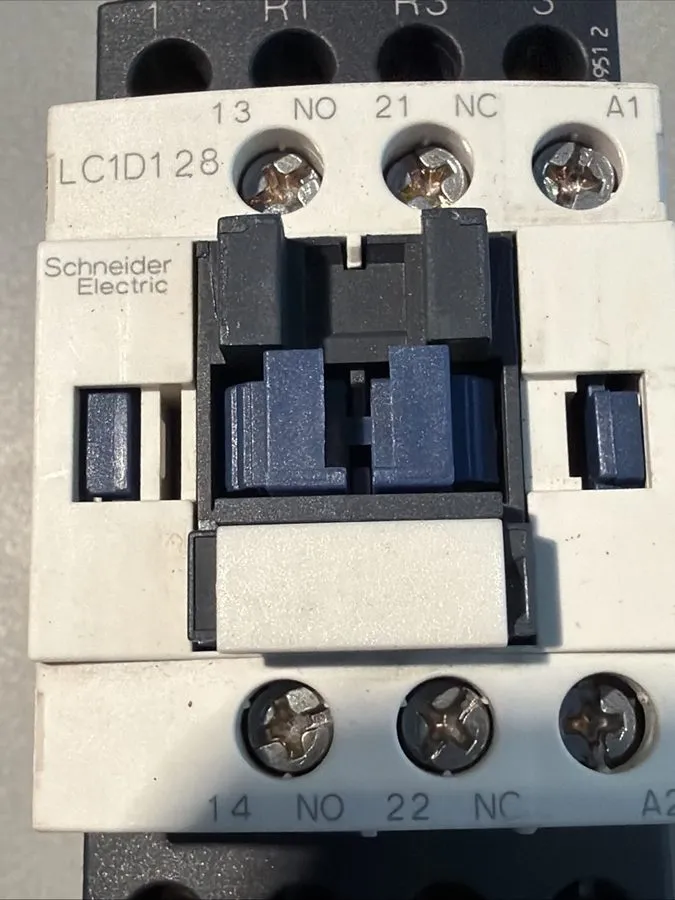

Schneider Electric LC1D128E7 TeSys D Contactor 4-Pole 2S+2NO 25A 48V AC 50/60Hz For sale is an original Schneider Electric power contactor from the proven TeSys D series (model name: LC1D128E7). The device has a control supply voltage of 48 V AC at a frequency of 50/60 Hz. As shown on the side nameplate (see image image_ae93ca.jpg), the conventional thermal current is ( $I_{th}$ ) 25 A. The device is designed as a 4-pole contactor with the pole composition of 2 normally open contacts (2 NO) and 2 normally closed contacts (2 NC). The assembly comes from a system dismantling, is used, shows normal signs of wear, but is in a fully functional condition. Condition Needed Technical data Brand: Schneider Electric / Telemecanique Model/Type: LC1D128E7 (TeSys D) Product type: Power contactor Number of poles: 4-pole (2 NO + 2 NC / 2 NO + 2 NC) Conventional thermal current ( $I_{th}$ ): 25 A Rated operating voltage ( $U_e$ ): 690V AC Rated impulse withstand voltage ( $U_{imp}$ ): 6kV Control voltage (coil): 48V AC (50/60Hz) Performance values ​​AC-3 (3-phase): 230V: 3kW / 400V: 5.5kW / 500-690V: 7.5kW Connection type: Robust screw terminals Country of manufacture: Made in Indonesia Features Reliable and safe switching of electrical loads in industrial environments. Special 4-pole contact distribution (2S + 2NC) for flexible switching and locking tasks. Integrated functionality according to global standards (IEC/EN 60947, UL, CSA, CCC). Areas of application Control of motors, heating resistors, lighting systems and other industrial consumers. Use in classic control cabinet construction and in automation systems. Ideal as a precisely fitting and economical spare part for maintenance or repairs. Characteristics Original branded component from professional disassembly. Easy installation on standardized 35 mm top-hat rails or using screw fastening. Clear labeling of all connection terminals on the housing for easy wiring. Advantages High reliability and long electrical life of the
