Клапан DN20 Two Way 3/4" AC/DC9-24V Stainless steel Motorized Ball Valve — продавец №7208533, лот B2B-3B61A0

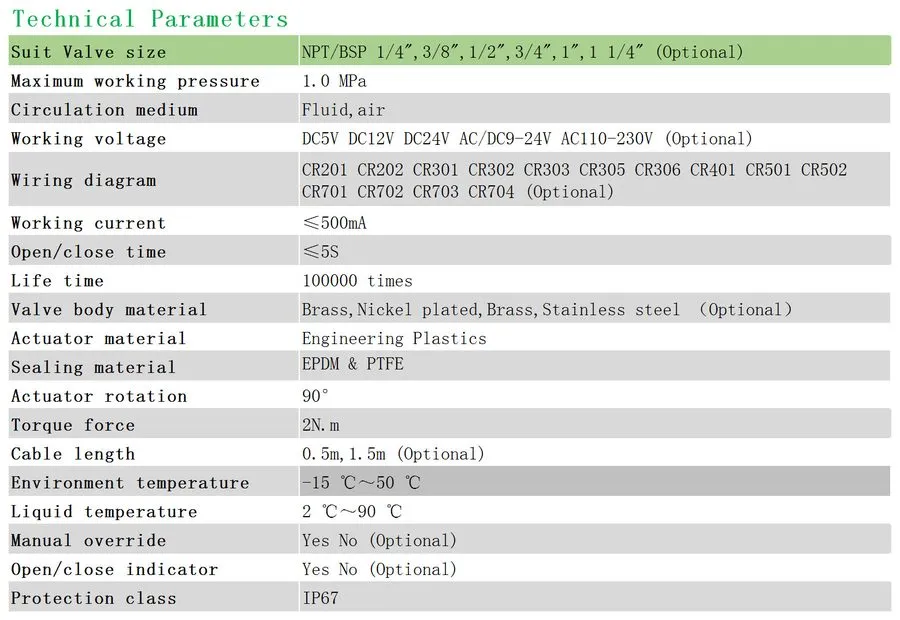

Product introduction This  1/2"   two-way stainless steel electric ball valve is small and exquisite in appearance, practical. Its internal transmission part adopts  all-metal gears  with high precision, large torque,  switching time less than 5 seconds , smooth operation. Besides, its protection level is up to  IP67 , and the normal service life is up to   100,000 times . Safe, durable, energy-saving and environmentally friendly advantages, widely used in home, HVAC, industrial, medical, environmental protection equipment ! Technical Parameter ※ Product Size：  1/2",DN15 ※ Valve Shread Option：  BSP ,NPT Optional（ Send BSP size by default, if you need NPT size, please note in  advance or contact the seller ） ※ Maximum Working Pressure：  1.0MPa ※ Circulation Medium：  Fluid,Air ※ Rated Voltage： AC/DC9~24V ※ Wiring Control Methods：  CR202NO, CR202NC, CR303,CR305,CR306,CR502NO, CR502NC, CR703 ※ Working Current：  ≤ 500MA ※ Valve Body Material：   Stainless steel ※ Open/Close Time：   ≤ 5 Sec ※ Life Time ： 100000 times ※ Actuator Meterial：  PPO ※ Plastics Sealing Meterial：  FKM & PTFE ※ Cable Length： 0.5m ※ Actuator Rotation：  90° ※ Environment Temperature：  -15 °C~50 °C ※ Liquid Temperature：  2 °C~90°C ※ Manual Override：  NO ※ Indicator ： Yes ※ Protection：  IP67 Applicable occasion ※ 1. HVAC ※ 2. Fire fighting equipment, medical equipment, cleaning equipment ※ 3. Automatic control system, automatic irrigation and drainage equipment ※ 4. Solar water heaters, solar water supply equipment ※ 5. Water treatment systems, drinking water equipment, efficient water-saving appliances ※ 6. Industrial self-control small equipment, environmental protection and other fields, replace the electromagnetic          valve can not work in a variety of occasions.
