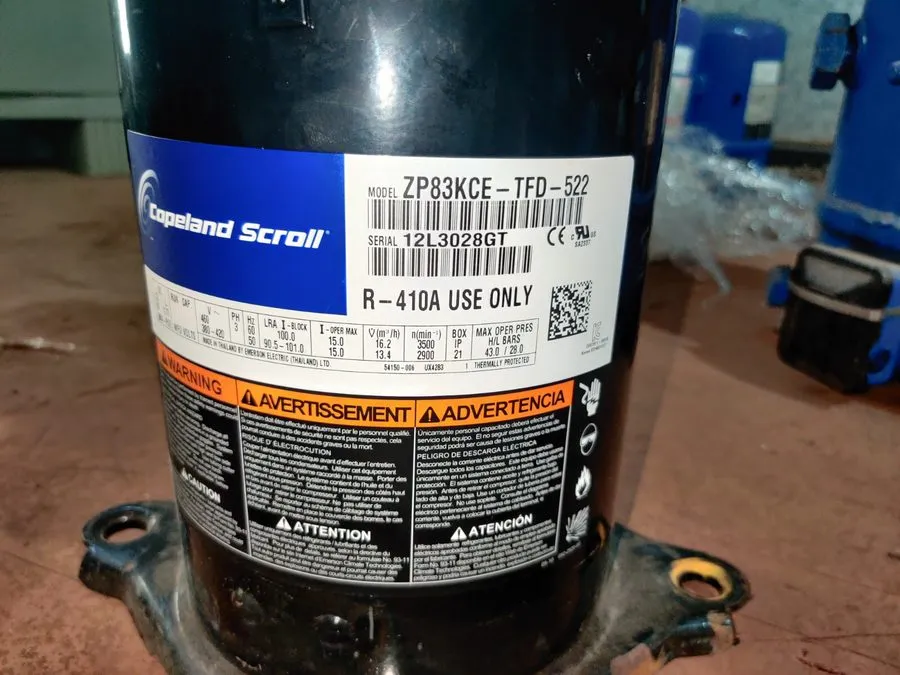

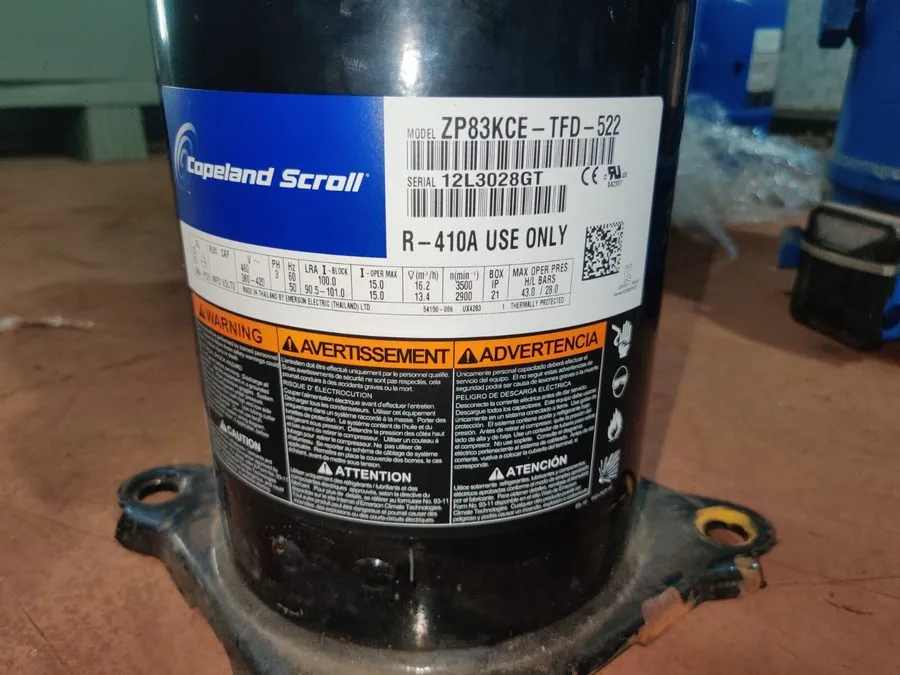

Компрессор ZP83KCE-TFD-522 Copeland Scroll Compressor — продавец №5864592

This Copeland Scroll Compressor (model ZP83KCE-TFD-522) is a powerful and reliable unit suitable for those in need of a central air conditioning system. With a black finish and scroll compressor type, this unit runs on 460 V voltage and uses R-410a refrigerant. It has a 6-6.9 tonnage and a 3 phase power phase, making it an ideal choice for businesses in need of a heavy-duty HVAC unit. The compressor is made by Copeland, a trusted brand known for producing quality HVAC and refrigeration components. This unit is new and comes in an open box, ready to be installed and put to use. Product information "Compressor COPELAND ZP83KCE TFD 522" ZP83K BOM 522: with solder connection, no sight glass Not tandem capable, with rubber vibration damper, for single installation Compressor Copeland Scroll ZP83 KCE-TFD-522 - R410A 380V/50Hz for air conditioning applications. Delivery volume: 13.4 m3/h (77.18 cm3) Rotalock connections: 7/8" x 1/2". Dimensions (LxWxH): 241x247x440 mm Noise level: 61 dB - 1m. Max. Operating current (FLA): 15 A. LRA: 101 A. Oil filling: 1.8 L. Winding resistance: 1.8 Ohm. Net weight: 40 kg. Gross weight: 51 kg. Recommended oil sump heater (power/diameter): 70 W / 185 mm Refrigeration capacity measured for condensation temperature of: 40°C, refrigerant R410A, measurement conditions: EN12900 Anschluss / Verdichtervariante: TFD-522 Compressor type: Scroll Compressor type: Scroll Condensation temperature: 40 °C Condensing units Compressors: Compressor Connection Size: 1/2" Content: 1,00 pcs. Cooling capacity (W) at To -5°C: 20400 Cooling capacity (W) at To 5°C: 14150 Delivery and suction volume (m3): 13,4 Design: Hermetic , Scroll Dimensions ( length × width × height ): 24.10 × 24.70 × 44.00 cm Displacement: 77.18 Field of application: HBP Info: Oil prefilled Manufacturer: Copeland , Copeland Emerson Max. Operating current (A): 15 Max. Starting current (A): 101 Measuring conditions: EN12900 Model range / field of application: ZP Oil quantity (l): 1,77 Power (W)
