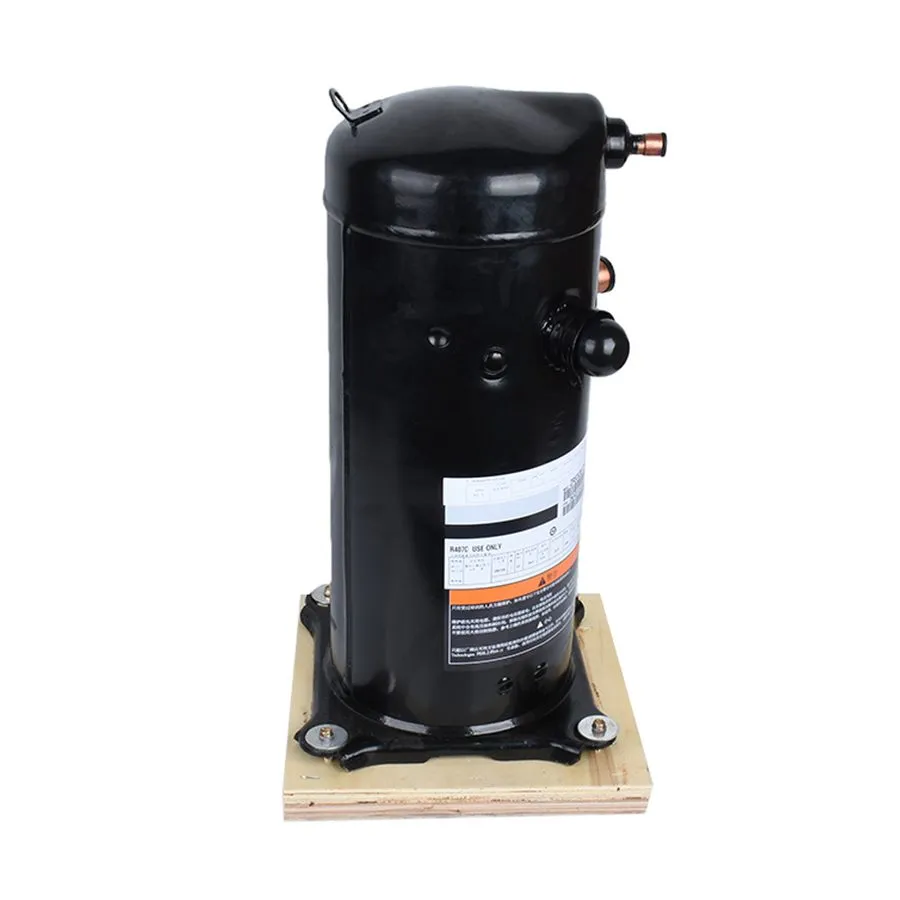

Компрессор Copeland ZR57K3E-PFV-830 5 Ton 1PH 208-230V 60Hz Compressor R -410A — продавец №3432687

For Copeland ZR57K3E-PFV-830 Scroll Compressor — 58,000 BTU, 208/230V 1Ph, R22/R407C ⚡ Core Specifications Parameter Value Model Number ZR57K3E-PFV-830 Nominal Capacity 5 Ton (4.8 HP) Cooling Capacity 58,000 BTU/h Refrigerant R-22 / R-407C / Oil Type Polyol Ester (POE) ⚡ Electrical Data Parameter Value Voltage 208/230 VAC Frequency 60 Hz Phase Single Phase (1Φ) RLA (Rated Load Amps) 31 A LRA (Locked Rotor Amps) 138A Max Input Power 5,060 W Motor Protection Internal Inherent Overload 📦 Package Includes Item Qty ZR57K3E-PFV-830 Scroll Compressor (factory-sealed) 1 Rubber mounting grommets (pre-installed) Set Factory-charged POE oil Included Note: Run capacitor (80 µF/370V), crankcase heater, and service valves are NOT included unless otherwise stated. Please verify your system requirements before purchase. ⚠️ Important Notes Topic Detail Professional Installation Must be installed by a licensed HVAC technician. Improper installation voids warranty. Crankcase Heater Energize crankcase heater for at least 12 hours before first start-up to prevent liquid slugging. Handling After Shipping Allow compressor to stand upright for at least 4 hours before installation if transported horizontally. Model Verification Confirm model number, voltage, phase, refrigerant, and mounting dimensions match your original unit before ordering. Vacuum & Leak Test System must be properly evacuated (deep vacuum) and leak-tested before charging refrigerant. Returns 30-day returns on unused, uninstalled units only. Once installed or pressurized, no refund. Warranty International Buyers About Oil Leakage Oil leakage during transit due to vibration is normal and can be remedied by topping up with POE (Polyol Ester) synthetic refrigeration oil
