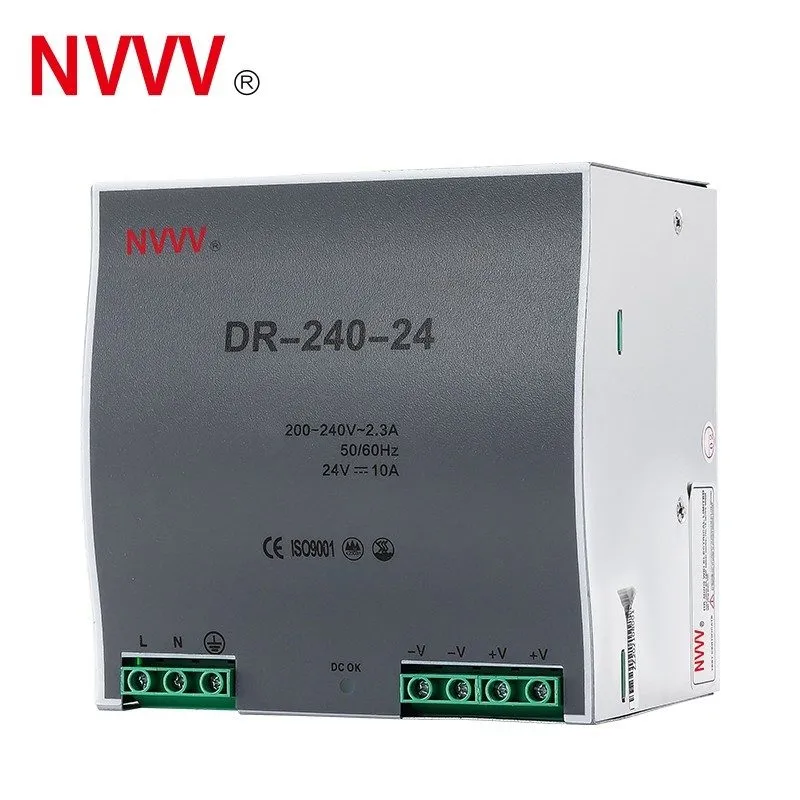

Блок питания 240W Din Rail Mounted 24VDC 10A Output Industrical Power Supply DR-240-24 — продавец №8740821

Model/Specification DR-240-24 DR-240-48 DC output voltage 24V 48V output voltage error(Note2) ±1% ±1% Rated output current 10A 5A Output current rage 0-10A 0-5A Wave and noise(Note mVp-p 150mVp-p inlet stability(Note4) ±0.5% ±0.5% Load stability(Note5) ±1% ±1% DC output power 240W 240W Efficiency 84% 85% Adjustable range for DC voltage V V AC input voltage range 180V-264VAC input current 3.5A/115V1.8A/230V AC impulse current Cold-start current 30A/115V50A/230V Leakage current <3.5mAV240VAC Overload protection 105%~150%Type:PULSING HICCUPSHUTDOWN Reset:auto recovery Over-voltage protection 30-34V 54-60V High-temperature protection 100℃±5℃(TSW1) Temperature coefficient ±0.03%°C(0~50°℃) Setup rise hold up time 800ms,40ms,20ms/230VAC 800ms,40ms,20ms/115VAC Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes Withstand voltage input and output interval:3KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC Isolation resistance input and output interval,Input and enclosure,Output and enclosure:500VAC/100M Ohms Working temperature and humidity 10℃~+50℃,20%~90%RH Store temperature and humidity 20℃~+85C,10%~95RH overall dimension 125.2*125.2*100mm Weight 1.2Kgs 20PCS/14.4KG/1.2CUFT Safety standards Meet UL1012 EMC standards Meet Part 15J conduction class B
