Плата Axiomtek SBC86807 V2.0 industrial board with 90 days — продавец №4949223

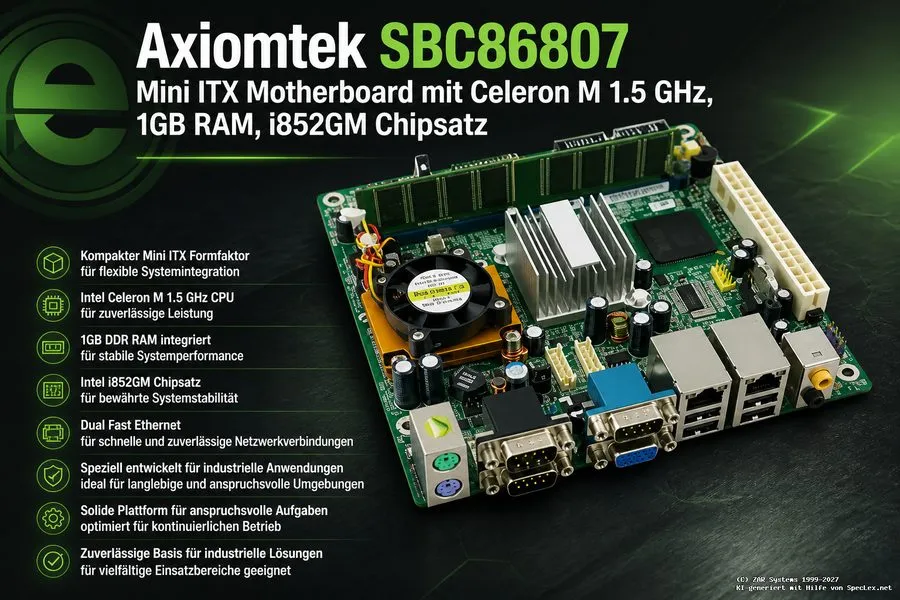

Axiomtek SBC86807 - motherboard - mini ITX Socket 478 (Mobile) - i852GM mit Interl Celeron M 1.5 Ghz CPU und 1GB RAM. Artikel ist gebraucht, wurde wiederaufbereitet und befindet sich in einem einwandfreien TOP Zustand. Hersteller: Axiomtek Part Nr.: SBC86807 Axiomtek SBC86807 CPU Board. Socket 478 Intel Pentium M Mini ITX SBC with DualView 4 COM and Dual LAN Simple Type: CPU Boards The SBC86807 supports Socket 478 Intel Pentium M and Intel Celeron M processors a FSB speed of 400MHz, and features an optional ULV/LV BGA type CPU. The SBCs standard and rich I/O features make it an incredible powertrain for enclosures and the standard form factor takes advantages of system implementation and makes it a ready solution for embedded applications. The board supports Audio, dual Fast Ethernet, 4 COM ports, 6 USB 2.0 ports DualView (LVDS LCD + CRT), and Digital I/O. In addition, the PCI slot through riser card enables easy expansion capability. The above features are especially applicable for transaction terminals, kiosks, internet pay phones, and low power applications. 4 COM ports for transaction terminal applications Dual Fast Ethernet supported DualView with different content & resolution Intel 852GM+ICH4 chipset PCI expansion through riser card RoHS compliant Socket 478 for Intel Pentium M/Celeron M processor with FSB 400MHz Audio: AC?97 codec audio Battery: Lithium 3V/196 mAH BIOS: Phoenix-Award 4Mbit with RPL/ PXE LAN Boot ROM, SmartView and customer CMOS backup Board Type: Mini-ITX Chipset: 852GM+ICH4Intel Chipset: Integrated in Intel 852GM GMCH CPU: Socket 478 for Intel Pentium M or Celeronprocessor with FSB 400 MHz (Optional for ULV/LV BGA type processor) Digital I/O: 4 channel IN and 4 channel OUT Dimensions: 170 x 170 mm Display Interface: * CRT connector for DAC output* LVDS LCD with 18/36/24/48-bit channel mode Ethernet: LAN 2 as Realtek RTL8100C Fast Ethernet Artikel ist sofort ab Lager verfügbar. Abbildung und Tech. Daten können leicht abweichen, mehr Produkti
