Толщиномер Paint Thickness Gauge CM-224 Auto Digital Coating Thickness Meter — продавец №4149788

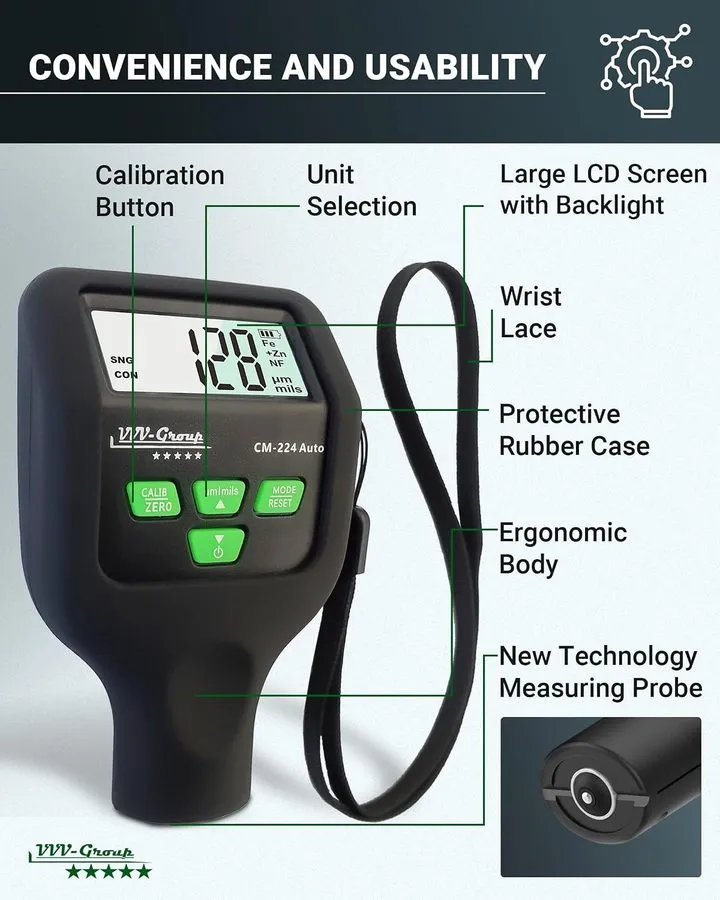

Store New Arrivals Add to Favorite Contact Paint Thickness Gauge CM-224 Auto – Digital Coating Thickness Meter for Cars and Automotive Inspection, Fe / Al / Fe+Zn Detection, 0.1 Μm Resolution, Factory Calibrated, Large Backlit LCD Description Product Dimensions 4.13 x 2.47 x 0.94 inches Item Weight 1 pounds Manufacturer VVV-Group Item model number CM-224Auto Batteries 2 AAA batteries required. (included) Product description SPECIFICATIONS for Paint Thickness Gauge CM-224Auto Supported base materials Ferrous metals (steel, iron), non-ferrous metals (aluminum, copper), galvanized steel (Fe+Zn) Substrate detection Automatic recognition of Fe / NFe / Fe+Zn substrates Measuring principle Magnetic induction (Fe, Fe+Zn) and eddy current technology (Al, Cu) Measurement range 0–1500 μm (0–59.1 mils) Resolution 0.1 μm (0.01 mils) Accuracy ±(3% + 2 μm) / ±(3% + 0.08 mils) Measurement modes Single measurement (SNG) and continuous measurement (CON) Measurement speed Less than 1 second per reading Fe+Zn detection capability Detects galvanized layer ≥15 μm; detection depth up to 200 μm Calibration methods Zero calibration and multi-point calibration using calibration foils Units μm / mils Display Large LCD with backlight and battery level indicator Auto power off Yes, after 5 minutes of inactivity Operating temperature –20 °C to +40 °C (–4 °F to 104 °F) Operating humidity Up to 90% RH Power supply 2 × 1.5 V AAA batteries Can this gauge measure plastic or carbon fiber parts? No. CM-224 Auto is a paint thickness gauge for metal substrates only: steel/iron (Fe) and aluminum/copper (NFe). Plastic bumpers, carbon fiber, and composites cannot be measured correctly because they don’t support magnetic/eddy current testing. What does Fe+Zn detection mean? Fe+Zn detects galvanized steel on ferrous panels. During used car inspection, compare symmetrical parts (left/right fender, doors, quarter panels). They should show the same material type. Different results may indicate a replaced or repa
