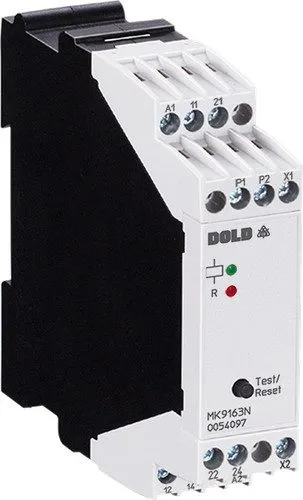

Реле защиты DOLD 0032082 Thermistor Motor Protection Relay MK9052.11/100 AC50/60HZ 230V — продавец №2094243, лот B2B-0BB577

Thermistor Motor Protection Relay MK9163N.12/61 AC50/60HZ 230V Thermistor Motor Protection Relay MK9163N.12/61 AC50/60HZ 230V Article: 0054096 DESCRIPTION The thermistor motor protection relay MK 9163N is used to To protect against thermal overload of motors caused by high switching frequency, havy duty starting, phase failure on one phase, bad cooling, high ambient temperature. Also the temperature monitoring of bearings, transmissions, oil and cooling liquids is possible. Up to six thermistors can be connected via the input. Technical specifications: mm Measuring range max.: > 3.8 kΩ Auxiliary voltage: AC, AC/DC Classification: Thermistor-Motorschutz Output contacts: 2 C/O contacts Enclosure design: Switch cabinet Type: MK 9163N Features: According to EN , EN 60947-8 Monitioring of overtemperature broken wire detection in sensor circuit short circuit detection in sensor circuit 1 input for 1 to 6 PTC-resistors De-energized on trip LED-indicator for auxiliary supply state of contact Output with 2 changeover contacts As option with manual reset, internal reset button and external remote reset X1/X2 Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4 As option with pluggable terminal blocks for easy exchange of devices with screw terminals or with cage clamp terminals Width 22.5 mm > PAYMENT SHIPPING and RETURN Shipping All shipments are fully insured and carried out in full compliance with the laws and product certification rules. Return Returns are accepted within 30 days after purchase, provided that the product is in its original condition, packaging and there are no signs of use. WARRANTY Our own operational warranty on all items in the case of appearance of a manufacturing defect within the first 60 days. POPULAR QUESTIONS How fast will my order will be delivered to me? What should I do If I have received a damaged item? Please con
