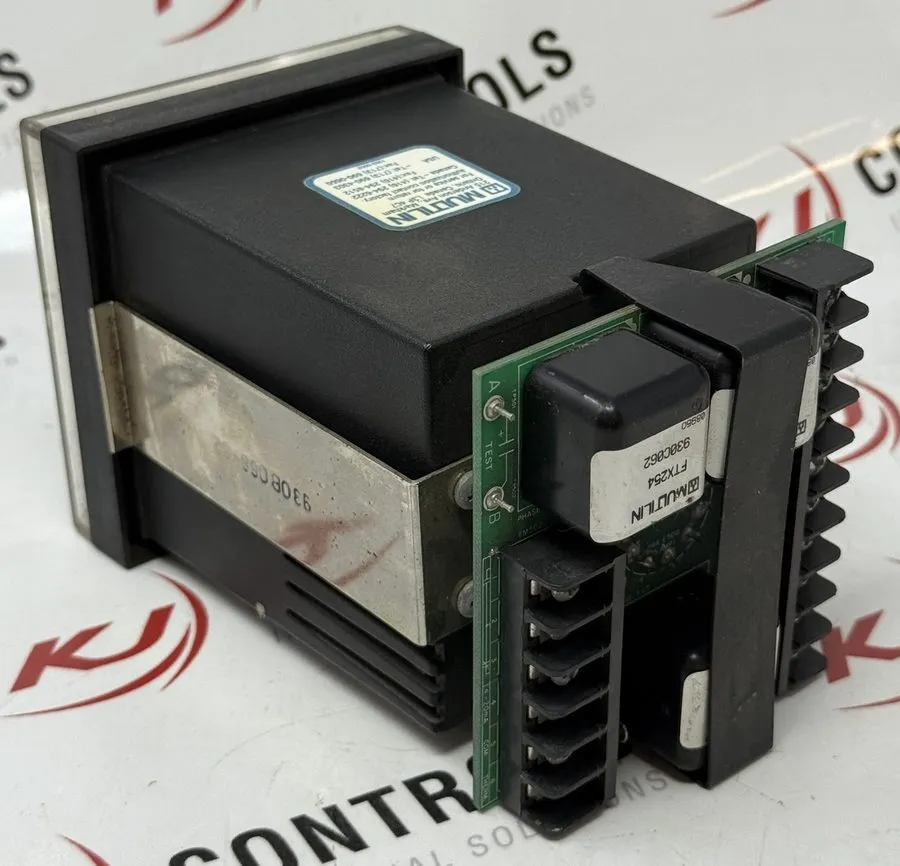

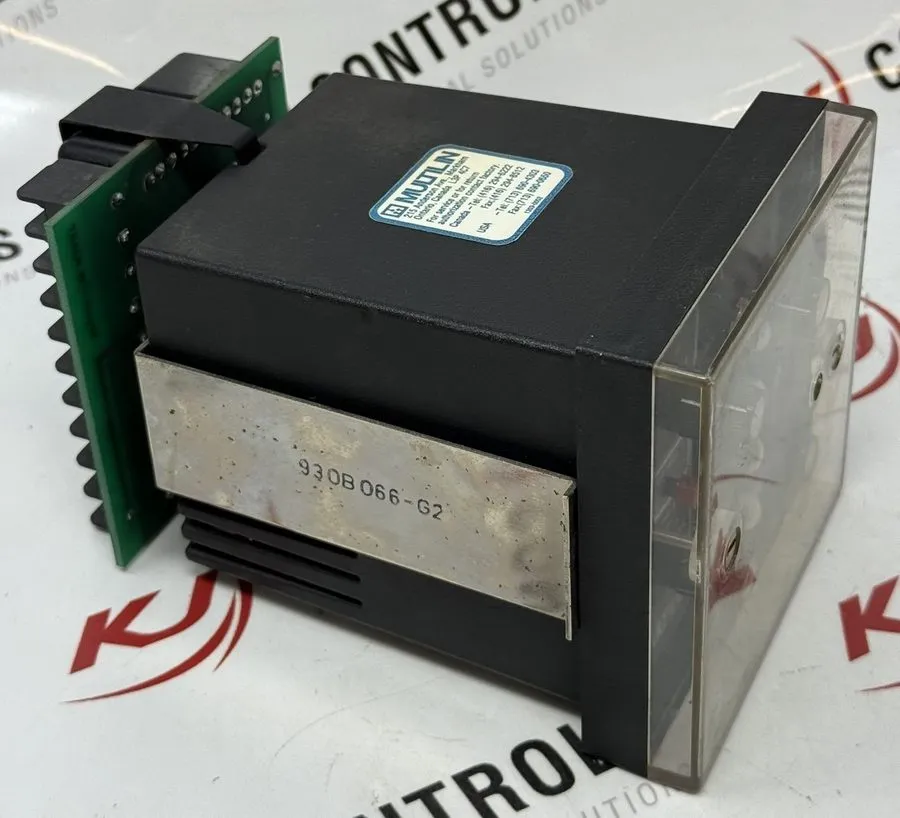

Реле защиты GE MULTILIN P4A-120 PROTECT4A MOTOR PROTECTION RELAY 120VAC — продавец №5608077

Multilin P4A-120 Protecta P4A Motor Protection Relay Product Basic Information: Manufacturer: Multilin Model Number: P4A-120 Alternate Part Number: P4A120 Series: Protecta P4A Product Type: Motor Protection Relay Country of Origin: Canada Technical Specifications: Control Voltage: 120 VAC Frequency: 50/60 Hz Current Rating: 4 Amp Full Load Current Adjustment (CT %): 50–100% Ground Fault / Earth Leakage Pickup: Adjustable 1–10 Amps Trip Time Adjustment: 0.03–1.0 Seconds Stall Time Adjustment: 2.5–20 Seconds Control Input: 120/240 VAC, 50/60 Hz, 5VA Output Contacts (Untripped): NO / COM / NC 4–20 mA Output Thermistor Input Status Indicators: Ready / Fault Max Contact Rating: 240VAC, 10A, 360VA Ground Fault CT Ratio: 2000:1 Panel Mount Design Product Features: Provides overload, unbalance, thermistor, and ground fault protection Adjustable full load and ground fault settings Trip test and manual reset functions Designed for industrial motor protection applications Product Designed Use: Protection of 3-phase AC motors Prevents damage from overload, stall, phase imbalance, and ground faults Suitable for pumps, compressors, conveyors, and industrial machinery Used in motor control centers and industrial panels COUNTRY OF ORIGIN INFORMATION IS INCLUDED WHERE AVAILABLE. KJ CONTROLS LTD IS NOT AN AUTHORIZED DISTRIBUTOR FOR MULTILIN (41A4 - Upstairs Warehouse)
