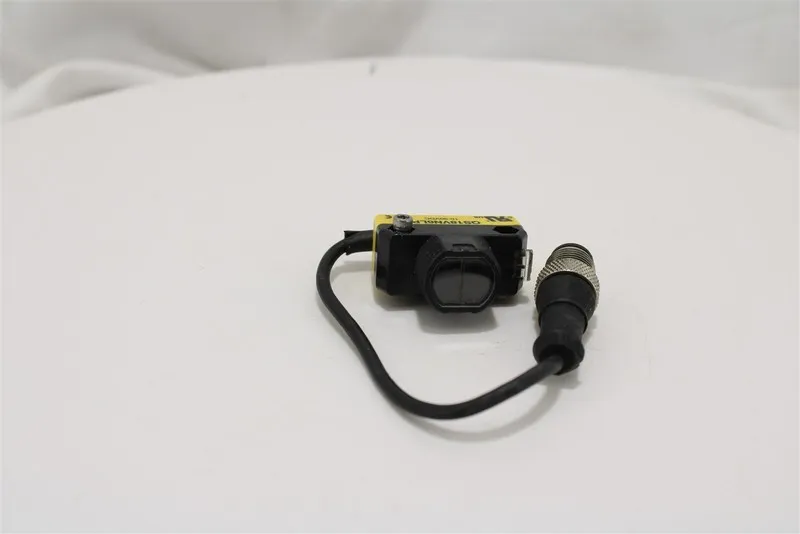

Фотоэлектрический датчик Banner QS18VN6LPQ5 Photoelectric Sensor 10-30 VDC — продавец №9837496

Description The Banner Engineering QS18VN6LPQ5 is a WORLD-BEAM QS18 Series polarized retroreflective photoelectric sensor (Banner internal part number 63177). It is also referenced as the cable version QS18VN6LP, which shares identical sensing specifications but connects via a 2 m direct cable rather than a pigtail quick-disconnect. Refer to manufacturer documentation to confirm compatibility with your specific application. The QS18VN6LPQ5 terminates in a 150 mm (6 in) M12 Euro-style 4-pin pigtail quick-disconnect connector. The rectangular thermoplastic housing uses M18 threaded lens-face mounting and also supports side-mount configurations, allowing it to retrofit into barrel sensor cutouts. Polarized retroreflective mode requires a corner-cube type retroreflective target only — standard tape reflectors are not compatible with this model. Technical Specifications Brand: Banner Engineering MPN: QS18VN6LPQ5 Banner Internal Part Number: 63177 Alternate Cable MPN: QS18VN6LP (61627) Type: Photoelectric Sensor Series: WORLD-BEAM QS18 Sensing Mode: Polarized Retroreflective Sensing Range: 3.5 m (11.5 ft) Supply Voltage: 10–30V DC Output Type: Complementary Solid-State NPN (Sinking) Contact Form: Single Pole, Double Throw (SPDT) — NO and NC Operation: Light-ON or Dark-ON (selectable) Switching Current (max): 100 mA Response Time: 0.6 ms Sensing Beam: Visible Red LED Sensitivity Adjustment: Single-Turn Potentiometer (finger or screwdriver) Indicators: 2 LED (top of housing) Termination: 150 mm (6 in) M12 Euro-Style 4-Pin Pigtail QD Connector Housing Material: Thermoplastic (ABS) Lens Material: Acrylic Body Style: Rectangular Mounting: M18 Threaded Lens Mount or Side Mount IP Rating: IP67 NEMA Rating: NEMA 6 Operating Temperature: -20°C to +70°C Humidity: 95% (non-condensing) at 50°C Current Type: DC Sensor Type: Solid State Certifications: cULus Recognized, CE Approved, RoHS Compliant Country of Manufacture: United States Condition: Used. This part was removed from a worki
