Кабель LDF4P-50A HELIAX Andrews Commscope Coax Cable Assembly N Male UHF Female SO239 — продавец №4758708, лот B2B-B24504

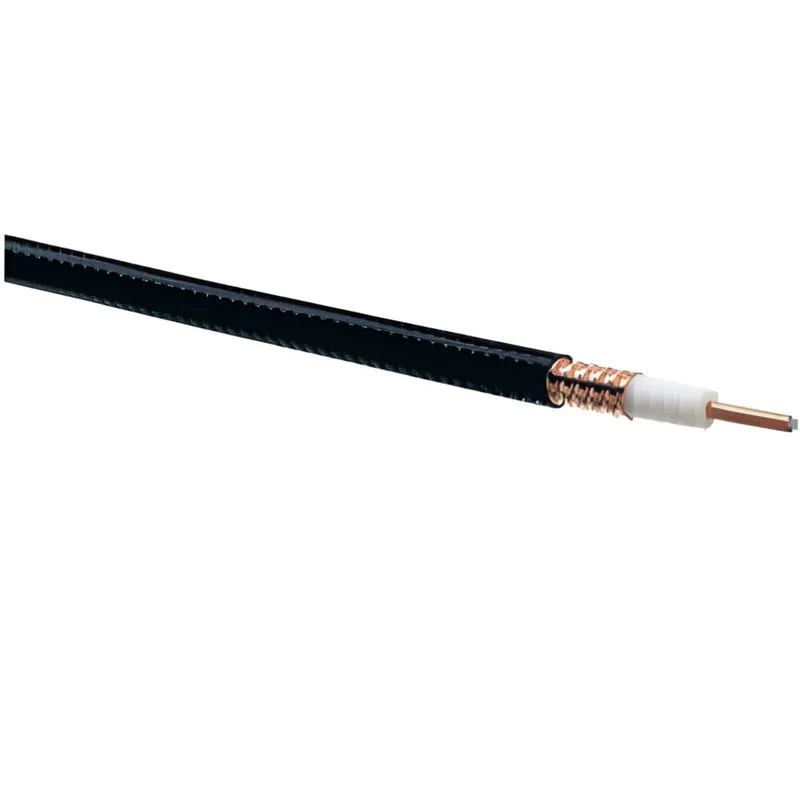

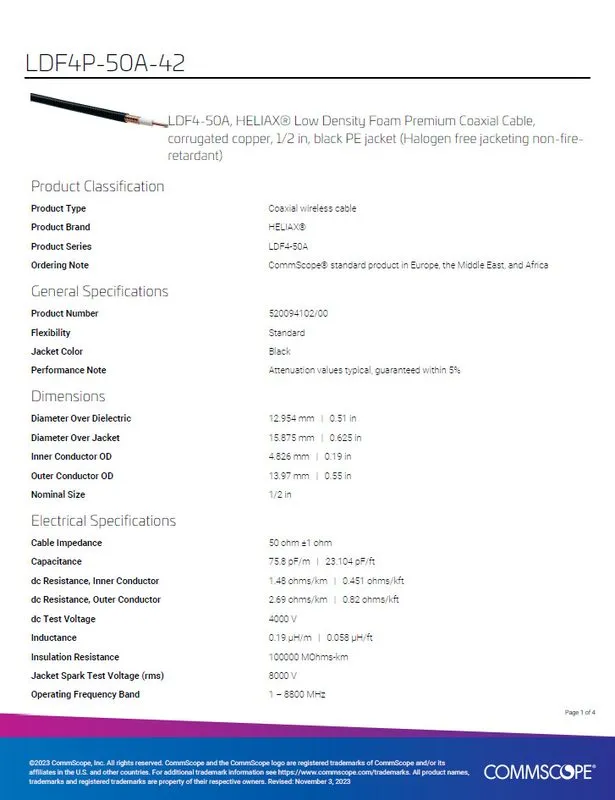

This Cable assembly has N type Male and Female connectors installed LDF4-50A, HELIAX® Low Density Foam Premium Coaxial Cable, C orrugated Copper, 1/2 in, black PE jacket (Halogen free jacketing) Jumper Assemblies in Wireless Communications Systems Short Antenna Feeder runs Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMAX, SCADA, Mobile Antennas, Sat Comms , Radio Amateur ,PMR 2 way Radio) requiring an easily routed, low loss high performance RF cable 3G or 4G repeaters Radio antennas or receivers General Specifications Flexibility Standard Jacket Color Black Performance Note Attenuation values typical, guaranteed within 5% Dimensions Diameter Over Dielectric 12.954 mm | 0.51 in Diameter Over Jacket 15.875 mm | 0.625 in Inner Conductor OD 4.826 mm | 0.19 in Outer Conductor OD 13.97 mm | 0.55 in Nominal Size 1/2 in Electrical Specifications Cable Impedance 50 ohm ±1 ohm Capacitance 75.8 pF/m | 23.104 pF/ft dc Resistance, Inner Conductor 1.48 ohms/km | 0.451 ohms/kft dc Resistance, Outer Conductor 2.69 ohms/km | 0.82 ohms/kft dc Test Voltage 4000 V Inductance 0.19 μH/m | 0.058 μH/ft Insulation Resistance 100000 MOhms-km Jacket Spark Test Voltage (rms) 8000 V Operating Frequency Band 1 – 8800 MHz Peak Power 40 kW Velocity 88 % Material Specifications Dielectric Material Foam PE Jacket Material PE Inner Conductor Material Copper-clad aluminum wire Outer Conductor Material Corrugated copper Mechanical Specifications Minimum Bend Radius, multiple Bends 127 mm | 5 in Minimum Bend Radius, single Bend 50.8 mm | 2 in Number of Bends, minimum 15 Number of Bends, typical 50 Tensile Strength 113 kg | 249.122 lb Bending Moment 3.8 N-m | 33.633 in lb Flat Plate Crush Strength 2 kg/mm | 111.995 lb/in Environmental Specifications Installation temperature -40 °C to +60 °C (-40 °F to +140 °F) Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F) Storage Temperature -70 °C to +85 °C (-94 °F to +185 °F) Attenuation, Ambient Temperature 68 °F | 20 °C Average Power, Ambient Temp
