Клеммник Allen-Bradley 1492-IFM20F-3 Bulletin 1492 IFM 20-Point 132V 3-Wire Sensor — продавец №9837496

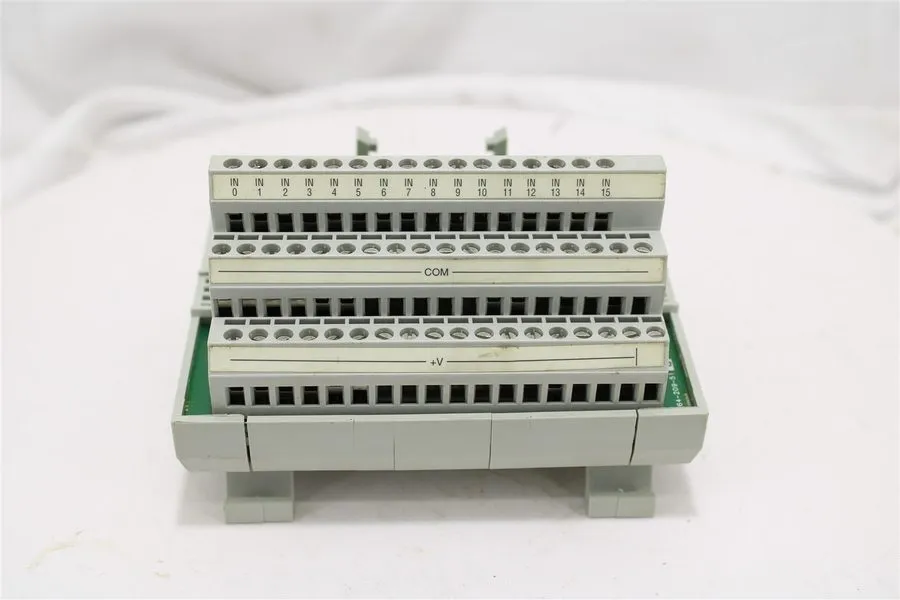

Allen-Bradley 1492-IFM20F-3 Bulletin 1492 IFM | 20-Point | 132V | 3-Wire Sensor Used: Item is removed from a retired process machine. Description The Allen-Bradley 1492-IFM20F-3 is a feed-through digital Interface Module (IFM) in the Bulletin 1492 I/O Wiring System family, manufactured by Rockwell Automation. It is designed to work with 16-point discrete I/O modules across the SLC -series) and PLC-5 (1771-series) platforms when paired with the appropriate pre-wired cable. Refer to manufacturer documentation to confirm compatibility with your specific application. This module provides Twenty (20) connection pins and supplies Three (3) field-side terminals per I/O point — the top terminal carries the I/O signal, while the middle and lower rows are commoned together in groups to serve as power buses, eliminating the need for additional terminal blocks when wiring 3-wire sensor devices. The module is rated for 12A at up to 132 VAC/VDC and mounts directly onto a standard 35 mm DIN rail. Each unit ships with a pre-printed adhesive label card that maps field-side terminal wiring to the connected PLC I/O module. The 1492-IFM20F-3 connects to the PLC I/O module via a Bulletin 1492 pre-wired cable (ordered separately); cable lengths of 1.0 m, 2.5 m, and 5.0 m are available. The "-3" suffix in the catalog number denotes the three-terminal-per-point field side configuration, distinguishing it from the standard single-terminal-per-point 1492-IFM20F. Technical Specifications Brand: Allen-Bradley (Rockwell Automation) MPN: 1492-IFM20F-3 Type: Feed-Through Digital Interface Module (IFM) Series: Bulletin 1492 I/O Wiring System Connection Points (Cable Side): 20 Pins Field-Side Terminals Per Point: 3 (3-Wire Sensor Configuration) Voltage Rating: 132 VAC/VDC (120V Nominal) Current Rating: 12A Mounting: 35 mm DIN Rail Operating Temperature: 0 to 60 degrees C Compatible Platforms: SLC -series), PLC-5 (1771-series) Certifications: C-TICK, CCC, CE, cUL, NRTL, UL Lifecycle Status: Active I
